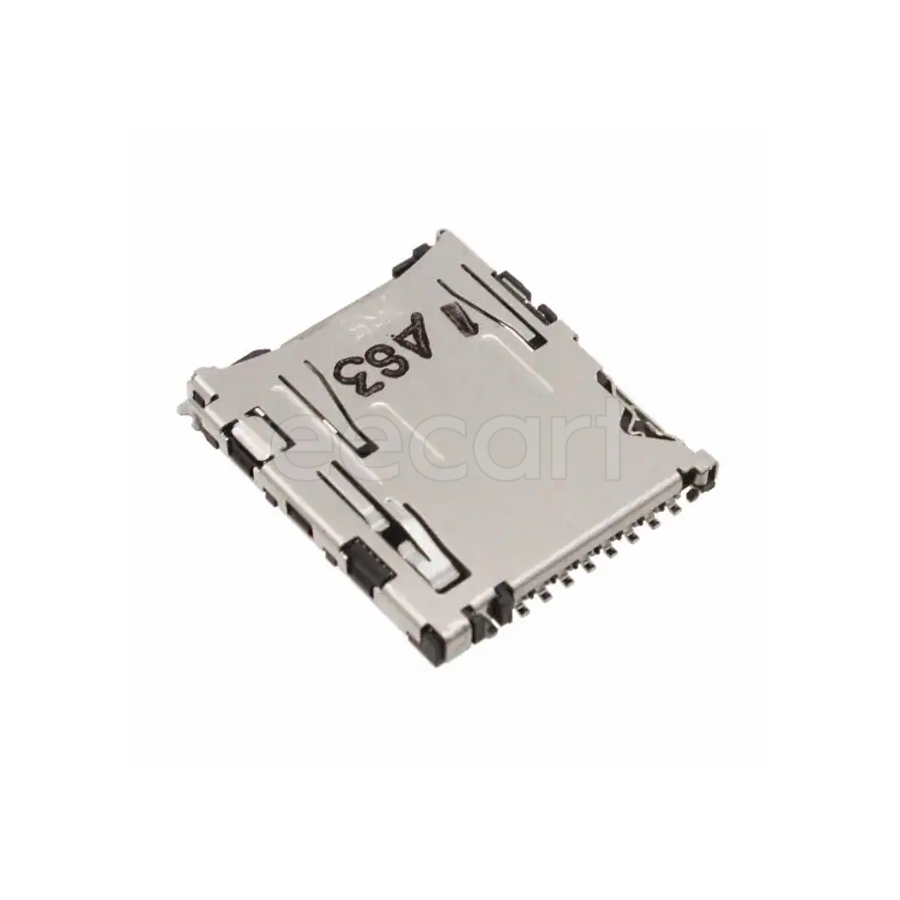

DM3AT-SF-PEJM5
Manufacturer:
Hirose Electric
Mfr.Part #:
DM3AT-SF-PEJM5
Datasheet:
Description:
Memory Connectors SMD/SMT Number of Positions:8 Connector
| Parameter | Value |
|---|---|
| Length | 13.85 mm |
| Width | 13.85 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 8 |
| Height | 1.68 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 15.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Manufacturer Package Identifier | DM3AT-SF-PEJM5 |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 1.1 mm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Memory Type | FLASH |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Female |
| Number of Contacts | 8 |
| Connector Type | Connector |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Black |
| Plating Thickness | 30 nm |
| Contact Voltage Rating (AC) | 125 V |
| Schedule B | 8536695050 |
| Contact Pitch | 1.1 mm |
| RoHS | Compliant |
Stock: 775
Distributors
pcbx
pcbxUnit Price$1.26749
Ext.Price$1.26749
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.26749 | $1.26749 |
| 10 | $1.06262 | $10.62620 |
| 25 | $0.97840 | $24.46000 |
| 50 | $0.90085 | $45.04250 |
| 100 | $0.82945 | $82.94500 |
| 300 | $0.77878 | $233.63400 |
| 500 | $0.73119 | $365.59500 |
| 1000 | $0.70587 | $705.87000 |
